Informations de base.
Modèle NON. | A3463502939 | Qualité | Haute qualité;OEM d'origine |
Taille | Taille standard d'OEM | Nom de la pièce | Engrenage conique North Benz Beiben |
MOQ | 1 PCS | Automatique | Automatique |
Goûter | Disponible | Marché principal | Mondial |
Essieu | Pièces d'essieu nord Benz Beiben | Condition | Nouveau |
Certificat | ISO 9001 | Forfait transport | Forfait Standard |
spécification | Composant standard | Origine | Chine |
Nombre de dents de la couronne | 28 dents | Nombre de dents biseautées | 17 dents |
Nombre de dents angulaires | 46 dents | Rapport de vitesse de l'ensemble d'essieu correspondant | je=5.73 |
Product Description

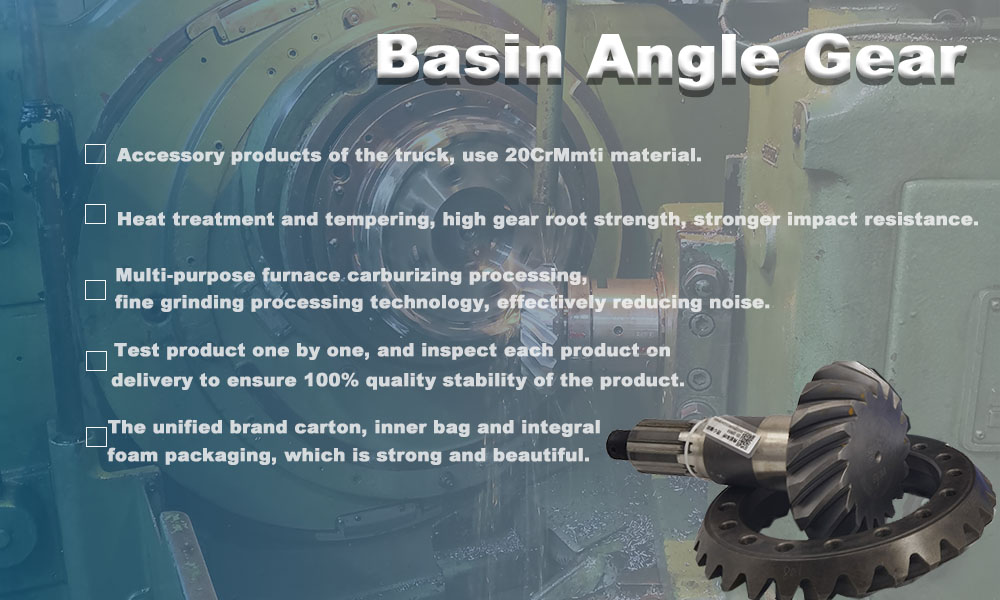

28/21 Bevel Gear For North Benz Beiben Truck Spare Parts A3463502939
Working principle of Bevel Gear
Single reduction gear is a driving bevel gear (commonly known as angular gear) and a basin angle gear pair. The driving bevel gear is connected with the transmission shaft, rotates clockwise, sticks to its right side from the bevel gear, and rotates downward at the meshing point, which is consistent with the forward direction of the wheel. Due to the small diameter of the driving bevel gear and the large diameter of the bevel gear, the function of deceleration is achieved.
The double reduction has an additional intermediate transition gear.The left side of the driving bevel gear is meshed with the bevel gear of the intermediate gear. The bevel gear is coaxial with a spur gear with small diameter, and the spur gear is meshed with the driven gear. In this way, the intermediate gear rotates backward and the driven gear rotates forward. There is a two-stage deceleration process in the middle.
Due to the increase of axle volume, double reduction was mainly used in vehicles with low engine power in the past, mainly in construction machinery with low speed and high torque.
In the double reduction final drive, if the second-stage deceleration is carried out near the wheel, it actually constitutes an independent part at the two wheels, it is called wheel reducer. The advantage of this is that the torque transmitted by the half shaft can be reduced, which is conducive to reducing the size and quality of the half shaft. The wheel reducer can be planetary gear type or composed of a pair of cylindrical gear pairs. When the cylindrical gear pair is used for wheel side deceleration, the up-down position relationship between the wheel axis and the half shaft can be changed by adjusting the mutual position of the two gears. This kind of axle is called portal axle, which is often used for vehicles with special requirements for the high and low position of the axle.
According to the number of the main reducer transmission ratio, it can be divided into single-speed and double-speed.
Domestic cars basically adopt single speed main reducer with fixed transmission ratio. On the double reduction final drive, there are two transmission ratios for selection, and this main reducer actually acts as an auxiliary transmission.
Company advantages
Main certification of bevel gear pair
(1) Passed ISO/TS16949:2009 quality management system certification.
(2) Passed ISO/IEC17025:2005 certification.
(3) Certified by National Laboratory Accreditation Committee.
(4) "100 Auto Parts Suppliers" in China.
(5) China Machinery Top 500.
(6) National first-class measurement enterprise.
(7) National first-class physical and chemical enterprise.
FAQ
Q1.Quelles sont vos conditions d'emballage?
Nous avons des emballages de marque et des emballages neutres, et nous pouvons également faire ce que vous voulez avec autorisation.C'est flexible.
Q2.Quelle est votre politique d'échantillonnage ?
Nous pouvons fournir l'échantillon si nous avons des pièces prêtes en stock, mais les clients doivent payer le coût de l'échantillon et les frais de messagerie.
Q3.Quelles sont les conditions et avantages de votre agence de marque ?
Après avoir signé un agent dans une ville, nous ne signerons pas une deuxième société pour protéger l'avantage de la marque et l'avantage du prix de l'agent.Et nous aiderons l'agent à développer des clients et à résoudre toutes sortes de problèmes difficiles et divers concernant les produits.
Q4.Comment garantir votre service après-vente ?
Inspection stricte pendant la production, vérifiez strictement les produits avant expédition pour assurer notre emballage en bon état.Suivez et recevez régulièrement les commentaires des clients.La garantie de nos produits est de 365 jours.
Chaque produit fournit un service d'assurance qualité.S'il y a un problème avec le produit pendant la période de garantie, le client peut négocier avec nous en détail les réclamations associées, et nous ferons de notre mieux pour satisfaire le client.
Q5.Comment faites-vous de notre entreprise une relation à long terme et bonne?
Nous gardons une bonne qualité et des prix compétitifs pour garantir que nos clients en bénéficient;
Nous respectons chaque client comme notre ami et nous faisons sincèrement des affaires et nous nous lions d'amitié avec eux, peu importe qui ils sont.
Q6.Quelles sont vos conditions de paiement ?
Par TT ou LC.Nous vous montrerons les photos des produits et des emballages avant de payer le solde.
T/T 30 % comme dépôt, et 70 % avant la livraison.Nous vous montrerons les photos des produits et des emballages avant de payer le solde.
